SILENT-100 CHZ DESIGN SILVER 3C Soler & Palau quiet bathroom extractor fan with humidity sensor and timer Ø100mm

Soler & Palau SILENT-100 CHZ DESIGN SILVER 3C Humidity Sensor Bathroom Extractor Fan

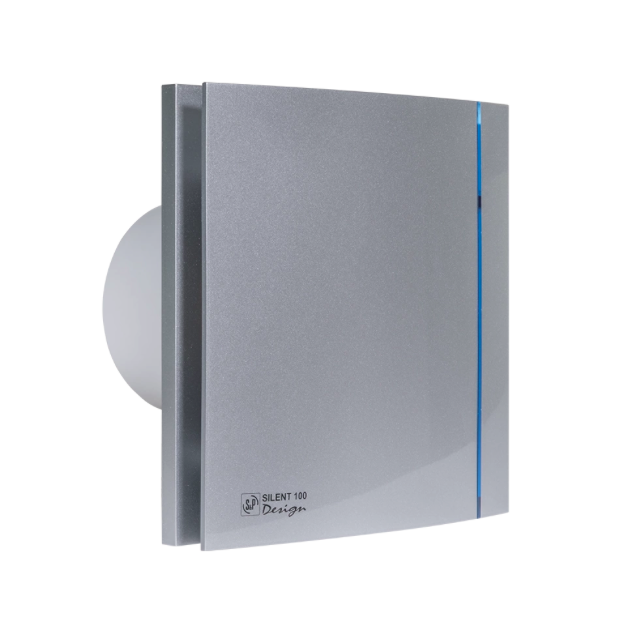

Featuring a distinctive glossy silver finish, this ultra-quiet Ø100 mm bathroom extractor fan provides automatic moisture-controlled ventilation through an adjustable electronic humidistat (60–90% RH) and 2–20 minute run-on timer. With 85 m³/h airflow at only 26.5 dB(A), it combines effective humidity extraction with quiet operation and modern bathroom styling.

The ball-bearing motor is mounted on Silent-Elastic-Blocks to absorb vibration and reduce noise transmission. An integrated automatic backdraft shutter closes when the extractor is not operating, helping prevent reverse airflow and limit unwanted heat loss.

MODEL FEATURES

KEY FEATURES

• Adjustable electronic humidistat: 60–90% RH
• Adjustable run-on timer: 1–30 minutes
• Automatic humidity-controlled operation
• Manual override via external light switch
• Ultra-quiet operation: 26.5 dB(A)
• Designed for Ø100 mm circular ducting
• Airflow rate: 95 m³/h
• Low power consumption: 8 W
• Long-life ball-bearing motor
• Automatic backdraft shutter helps prevent reverse airflow and heat loss
• Silent-Elastic-Blocks minimise vibration and noise transmission
• Pilot light for operating status indication
• Interchangeable colour bars: blue, red, green and yellow
• Injection-moulded plastic construction
• Metalic silver finish
• Suitable for wall or ceiling installation
• Direct outdoor discharge or connection to an individual ducting system

HUMIDITY SENSOR & TIMER OPERATION

When operating automatically, the humidistat activates the fan whenever room humidity rises above the selected 60–90% RH threshold. Once the humidity drops below the set point, the extractor continues running for the selected timer period before switching off.

For additional ventilation when humidity is below the selected level, the fan can be activated manually using an external light switch. After the switch is turned off, extraction continues for the preset 2–20 minute run-on period.

TECHNICAL INFORMATION

DIMENSIONS

APPLICATION

Ideal for bathrooms, WCs, shower rooms and utility rooms requiring automatic humidity control. The SILENT-100 CHZ DESIGN SILVER 3C automatically responds to increased moisture levels, helping control humidity, condensation and steam, while the timer and manual override provide additional extraction of stale air and unwanted odours.
