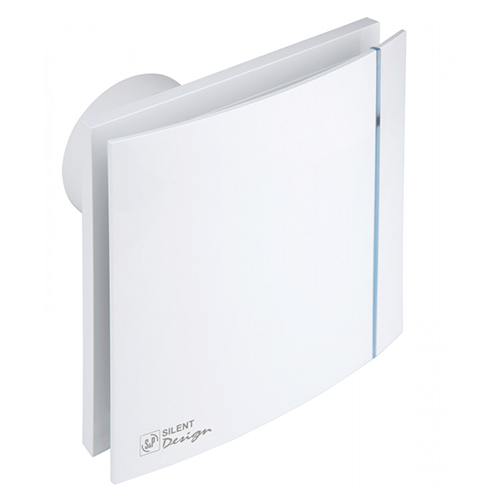

SILENT-100 CHZ DESIGN Soler & Palau bathroom extractor fan with humidity sensor and timer Ø100mm
€166.90 Incl. VAT
Soler & Palau Silent-100 CHZ Design ultra quiet 100mm bathroom extractor fan with humidity sensor and timer, ideal for bathrooms, showers, toilets, and utility rooms. The integrated humidistat automatically activates the fan when humidity levels rise, while the adjustable run-on timer ensures effective moisture extraction and helps prevent condensation and mould growth. Delivering up to 85 m³/h airflow at just 26.5 dB(A), this silent bathroom fan combines powerful ventilation with exceptionally quiet operation.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau Silent-100 CHZ Design Ø100mm Bathroom Extractor Fan with Humidity Sensor and Timer
The Soler & Palau Silent-100 CHZ Design is a premium bathroom extractor fan engineered for moisture-prone areas where quiet operation and automatic humidity control are essential. Ideal for bathrooms, shower rooms, toilets, and utility spaces, it helps prevent condensation, dampness, and mould growth while maintaining a comfortable indoor environment.
Equipped with an adjustable humidity sensor (humidistat), the fan automatically switches on when the relative humidity exceeds the selected threshold (60–90% RH). The integrated run-on timer keeps the fan operating for a preset period (1–30 minutes) to ensure complete moisture removal.
The fan features Soler & Palau’s innovative Silent-elastic-block motor mounting system, which isolates vibrations and significantly reduces noise transmission. This advanced technology enables whisper-quiet operation at only 26.5 dB(A), making it one of the quietest bathroom extractor fans in its class.
Its modern flat front panel complements contemporary interiors, while the integrated backdraft shutter prevents unwanted air entry, odours, and heat loss when the fan is not operating.
Key Benefits
- Quiet bathroom extractor fan with only 26.5 dB(A) noise level
- For 100mm connection
- Built-in humidity sensor (humidistat) for automatic operation
- Adjustable humidity setting from 60% to 90% RH
- Adjustable run-on timer (1 – 30 min)
- High airflow performance of 85 m³/h
- Helps prevent condensation, dampness, and mould
- Silent-elastic-block motor mounting system reduces vibration and noise
- Backdraft shutter prevents cold air, draughts, and odours from entering
- Ball bearing motor for extended service life
- Stylish flat front panel for modern bathrooms
- Suitable for continuous residential use
- IP45 protection rating for humid environments
- Operating temperature up to +40°C
- Made in Spain
Applications
- Bathrooms
- Shower rooms
- Toilets and cloakrooms
- Utility rooms
- Laundry rooms
- Apartments and houses
- Hotels and hospitality facilities
- Residential ventilation systems
| Weight | 0.898 kg |
|---|---|
| Dimensions | 590 × 210 × 210 mm |
| Product type | Bathroom and WC extract fan |
| Series | SILENT DESIGN |
| Connection diameter Ø (mm) | 100 |
| Functions | Humidity sensor, Timer |
| Backdraft shutter | Yes |
| Ball Bearings | Yes |
| Pilot light | Yes |
| Number of Speeds | 1 speed |
| Speed control | Fixed speed |
| Speed (rpm) | 2400 |
| Operation mode | Intermittent |
| Airflow (m³/h) | 85 |
| Temperature range (°C) | 0 / +40 |
| Maximum pressure (Pa) | 37 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Protection Class | Class II |
| Thermal overload protection | Yes |
| Motor insulation class | Class B |
| IP rating | IP45 |
| Height (mm) | 188 |
| Width (mm) | 188 |
| Depth (mm) | 129.5 |
| Weight (kg) | 0.65 |
| Color | White |
| Material | Plastic |
| Mounting type | Ceiling mounted, Wall mounted |
| Country of origin | Spain |
| Brand | Soler & Palau |
| Manufacturer | Soler & Palau |
| Manufacturer Code | 5210602000 |
| BAR/EAN | 8413893313386 |
