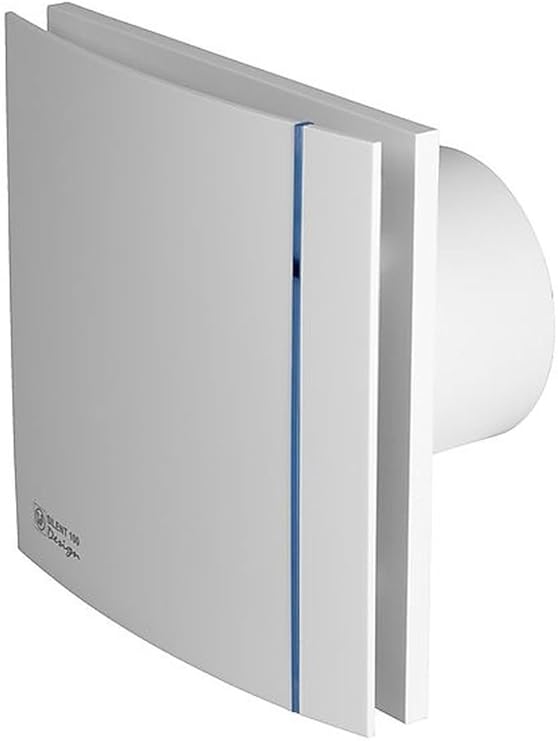

SILENT-100 CRZ DESIGN Soler & Palau bathroom extractor fan with timer Ø100 mm (ball bearings)
€124.90 Incl. VAT
The Soler & Palau SILENT-100 CRZ Design is a quiet 100mm bathroom extractor fan with adjustable timer, ball bearing motor, and backdraft shutter for efficient bathroom ventilation. Designed for bathrooms, toilets, and en-suites, this energy-efficient exhaust fan delivers airflow up to 85 m³/h at just 26.5 dB(A). Featuring advanced Silent-Block technology, it helps reduce humidity, condensation, and unwanted odours while ensuring ultra-quiet operation.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau SILENT-100 CRZ Design Bathroom Extractor Fan With Timer Ø100mm
The Soler & Palau SILENT-100 CRZ Design is a quiet and stylish 100mm bathroom extractor fan with adjustable timer, backdraft shutter, and silent-block motor mounting for efficient and comfortable bathroom ventilation. Designed for bathrooms, toilets, and en-suite spaces, this energy-efficient bathroom exhaust fan delivers airflow up to 85 m³/h while operating at just 26.5 dB(A), helping reduce humidity, condensation, steam, and unwanted odours with minimal noise.
Featuring an adjustable run-on timer (1–30 minutes), the fan continues ventilating after the light is switched off for improved moisture control and indoor air quality. The decorative flat front panel blends seamlessly into modern interiors, while the integrated backdraft shutter helps prevent unwanted airflow and heat loss when the fan is not operating.
The integrated Silent-Block system absorbs motor vibrations before they reach the fan housing, significantly reducing noise transmission and ensuring ultra-quiet operation.
KEY FEATURES & BENEFITS
- Very quiet bathroom extractor fan
- 100mm connection with air ducts
- Adjustable run-on timer (1–30 minutes)
- Automatic backdraft shutter
- Built-in pilot light indicator
- Ball bearings
- Low noise operation — only 26.5 dB(A)
- Airflow up to 85 m³/h
- Advanced Silent-Block anti-vibration technology
- Energy-efficient bathroom exhaust fan
- Decorative flat front panel design
- Helps reduce condensation, humidity, and odours
- IP45 rated protection
- Motor insulation class B
- Electrical protection Class II
- Suitable for bathrooms, toilets, and en-suites
- Made in Spain
APPLICATIONS
- Bathrooms
- Toilets and WC areas
- En-suite bathrooms
- Shower rooms
- Utility rooms
- Small residential spaces requiring quiet ventilation
Help reduce:
- Excess humidity
- Condensation on walls and mirrors
- Steam build-up
- Unpleasant odours
- Mould and dampness
- Stale indoor air
The Soler & Palau SILENT-100 CRZ Design combines elegant design, ultra-quiet performance, and reliable timer-controlled ventilation, making it an excellent choice for modern bathrooms and WC areas.
| Weight | 0.898 kg |
|---|---|
| Dimensions | 590 × 210 × 210 mm |
| BAR/EAN | 8413893313362 |
| Manufacturer Code | 5210601900 |
| Product type | Bathroom and WC extract fan |
| Series | SILENT DESIGN |
| Functions | Timer |
| Connection diameter Ø (mm) | 100 |
| Number of Speeds | 1 speed |
| Speed control | Fixed speed |
| Backdraft shutter | Yes |
| Ball Bearings | Yes |
| Pilot light | Yes |
| Speed (rpm) | 2400 |
| Airflow (m³/h) | 85 |
| Sound level (dB(A)) | 26.5 |
| Power (W) | 8 |
| Temperature range (°C) | 0 / +40 |
| Electrical supply | Single phase |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Maximum pressure (Pa) | 37 |
| IP rating | IP45 |
| Motor insulation class | Class B |
| Thermal overload protection | Yes |
| Protection Class | Class II |

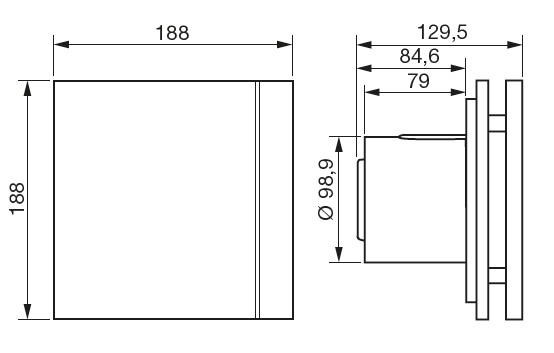

| Height (mm) | 188 |
| Width (mm) | 188 |
| Depth (mm) | 129.5 |
| Weight (kg) | 0.65 |
| Color | White |
| Material | Plastic |
| Shape | Square |
| Country of origin | Spain |
| Brand | Soler & Palau |
