JETLINE-200 Soler & Palau quiet inline duct fan Ø200mm
€257.80 Incl. VAT
Soler & Palau JETLINE-200 quiet inline duct fan Ø200 mm is a high-performance centrifugal inline fan offering airflow up to 1,040 m³/h with a 54 dB(A) noise level. Its low-profile galvanised steel casing and 117 W external rotor AC motor provide dependable performance for residential, commercial, and HVAC ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau JETLINE-200 low-profile inline duct fan is suitable for 200 mm ventilation duct systems requiring high airflow, quiet operation, and efficient air extraction. Its low-profile galvanised steel casing allows installation in confined spaces while providing excellent durability for residential, commercial, and HVAC ventilation systems.
The fan is equipped with an optimised aerodynamic impeller, guide vane, and outlet diffuser that maximise airflow performance while reducing turbulence and operating noise. An airtight connection between the galvanised steel housing and the guide vane, together with rubber-sealed duct flanges, helps minimise air leakage and maintain efficient ventilation performance.
KEY FEATURES
- Quiet 200 mm inline duct fan
- Airflow up to 1,040 m³/h
- Low noise level – 54 dB(A)
- 117 W external rotor AC motor
- Low-profile galvanised steel casing
- High aerodynamic performance
- Optimised impeller, guide vane and outlet diffuser
- Airtight housing construction to minimise air leakage
- Rubber-sealed duct connections for improved airtightness
- Silent-block motor mounting to reduce vibration and installation noise
- Built-in IP65 terminal box for indoor and outdoor installation
- Heavy-duty mounting bracket with two installation positions
MOTOR & TECHNICAL INFORMATION
- Single-phase external rotor AC motor
- Power consumption – 117 W
- Voltage-controllable speed
- Compatible with RMB-1.5 speed controller
- Thermal overload protection with manual reset
- Power supply – 220–240 V / 50–60 Hz
- Motor protection rating – IP44
- Terminal box protection rating – IP65
- Motor insulation – Class F
- Operating temperature – -20°C to +60°C

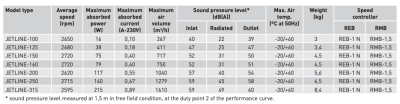

CHARACTERISTICS
JETLINE-200 DIMENSIONS (mm)
JETLINE-200 MOUNTING POSITIONS FOR SUPPORT
The fan can be mounted in two different positions by changing the position of the support’s anchoring. Terminal box does not add to the overall height dimensions.
INSTALLATION POSITIONS
The Jetline series duct fan can be installed in any position, providing maximum installation flexibility.
APPLICATIONS
Suitable for commercial ventilation, office buildings, workshops, retail premises, technical rooms, warehouses, and other 200 mm duct ventilation systems where high-capacity airflow, quiet operation, and reliable air extraction are required.
| Weight | 6.6 kg |
|---|---|
| Dimensions | 400 × 383 × 348 mm |
| Product type | In-line duct fan |
| Series | JETLINE |
| Connection diameter Ø (mm) | 200 |
| Ball Bearings | Yes |
| Number of Speeds | 1 speed |
| Speed control | Autotransformer speed controller |
| Speed controller | RMB-1,5 |
| IP rating | IP44 |
| Electrical supply | Single phase |
| Voltage (V) | 230-240 |
| Frequency (Hz) | 50/60 |
| Temperature range (°C) | -20 / +60 |
| Protection Class | Class I |
| Motor type | AC motor |
| Motor insulation class | Class I |
| Thermal overload protection | Yes |
| Rubber gasket | Yes |
| Mounting type | Ceiling mounted, Wall mounted |
| Installation orientation | Horizontal, Vertical |
| Material | Galvanized steel sheet |
| Color | Silver |
| Country of origin | Spain |
| Brand | Soler & Palau |
| Manufacturer | Soler & Palau |
