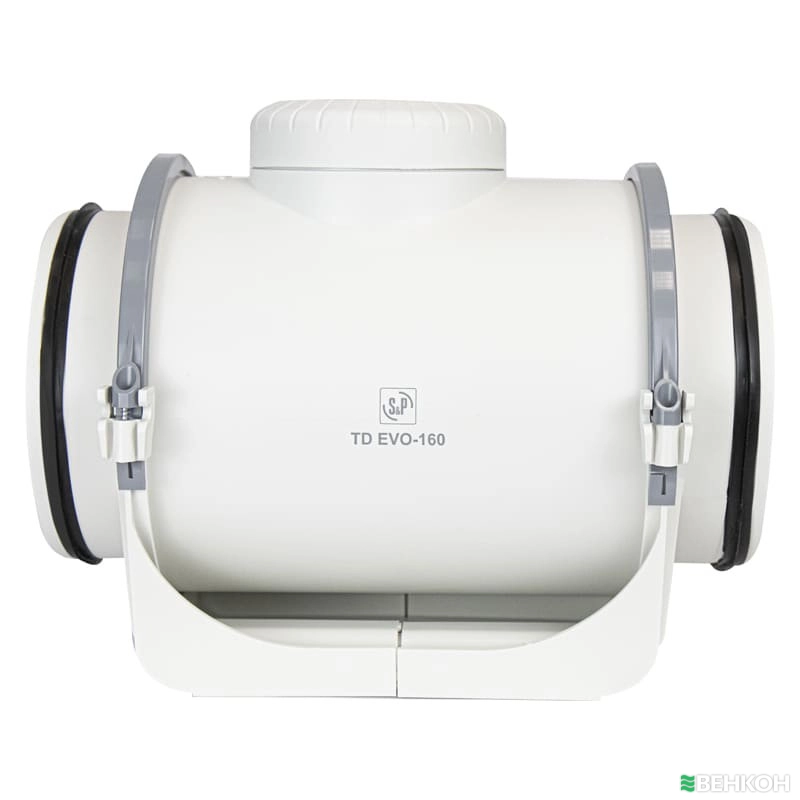

TD EVO-160 T Soler & Palau mixed flow in-line duct fan with timer Ø160mm

– Soler & Palau TD EVO-160 T mixed flow in-line duct fan designed for 160 mm circular ducts, equipped with an adjustable timer (1–30 minutes).

– 3 speeds. Not suitable for speed control.
– Airflow capacity: 440 / 500 / 560 m³/h.
– Sound level: 39 / 42 / 45 dB(A).
– Power consumption: 33 / 37 / 45 W.

– The unique support bracket design allows the motor and impeller assembly to be removed or fitted without dismantling the connected ducting, simplifying installation and maintenance.

– The low-profile casing makes TD-EVO fans ideal for installations with limited space such as false ceilings or compact technical areas.

– Optimised impeller, guide vane and outlet diffuser design improves aerodynamic efficiency, increasing airflow performance while reducing noise levels.

– Airtight construction with double-injection sealing between the main body and the support bracket prevents air leakage and improves system efficiency.

– Rubber gaskets on the duct flanges enhance airtightness when connected to ducting.

– Silent-block motor mounting reduces vibration transmission and lowers the overall sound level of the installation.

– The fan body can be rotated to reverse the airflow direction or to position the terminal box for easier electrical access, without removing the mounting bracket.

Motor:
– 3 speeds
– Single-phase AC motor
– 220–240 V, 50/60 Hz
– Insulation class F
– Protection rating IP44
– Thermal protection with manual reset

– Operating temperature range: −20 to +60 °C.

– Ideal in-line duct fan solution for residential and commercial ventilation applications requiring high airflow and reliable performance.

– Made in Spain.
