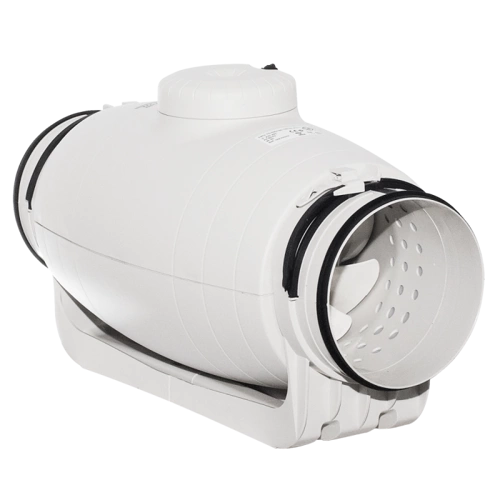

TD-800/200 SILENT 3V Soler & Palau quiet mixed flow inline duct fan Ø200mm
€306.70 Incl. VAT
Soler & Palau TD-800/200 SILENT 3V ultra-quiet Ø200mm mixed flow inline duct fan with adjustable 3-speed control and sound-absorbent insulation. Delivers powerful airflow up to 910 m³/h with low noise levels of just 22–28 dB(A), making it ideal for residential and commercial ventilation systems. Features a durable ball-bearing motor with thermal overload protection for reliable long-term performance.
Available on back-order
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– The Soler & Palau TD-800/200 SILENT 3V is a low-profile, ultra-quiet in-line duct fan specifically engineered to deliver powerful and silent air movement for homes, offices, and commercial environments.
– It is certified by the Noise Abatement Society for its exceptionally low noise level, ensuring quiet comfort even during continuous operation.
– Constructed from durable, high-grade plastic, the TD-800/200 SILENT 3V features an aerodynamically designed internal skin that channels sound waves at the ideal angle for absorption by the sound-insulating material. This innovative design minimizes noise and vibration while maximizing airflow efficiency.
– Equipped with rubber gaskets on both the inlet and outlet, the fan effectively absorbs vibrations and provides a secure, airtight fit.
– The removable fan body simplifies maintenance and cleaning without dismantling duct connections, while the 360° rotatable connection box allows flexible electrical wiring for quick, professional installation.
– The three-speed 230V-50Hz motor is speed-controllable, fitted with ball bearings, thermal overload protection, and rated IP44 for safe, long-term operation.
– This makes the TD-800/200 SILENT ideal for spaces where people work or live for long hours, such as bathrooms, meeting rooms, kitchens, workshops, and HVAC systems that demand continuous, low-noise air extraction.
– Offers the perfect balance between performance, silence, and efficiency.
– It is easy to install, energy-saving, and engineered for durability — making it the ideal solution for modern ventilation systems in both residential and commercial buildings.
– Suitable with 3-speed switches COM-3 and INTER 4P and single phase speed controller RMB-1,5 and REB-1.
– Maximum absorbed current: 0,46/0,47/0,5 (A)
– Weight 8.7 kg
– Made in Spain.
| Weight | 8.7 kg |
|---|---|
| Dimensions | 650 × 340 × 400 mm |
| Product type | In-line duct fan |
| Series | TD-SILENT |
| Functions | Standard |
| Connection diameter Ø (mm) | 200 |
| Number of Speeds | 3 speeds |
| Speed control | 3-speed switch, Single-phase speed controller |
| Ball Bearings | Yes |
| Airflow (m³/h) | 690/780/910 |
| Sound level (dB(A)) | 22/24/28 |
| Power (W) | 90/92/102 |
| Temperature range (°C) | -20 / +60 |
| Voltage (V) | 230 |
| Motor insulation class | Class B |
| Thermal overload protection | Yes |
| Rubber gasket | Yes |
| Width (mm) | 327 |
| Height (mm) | 264 |
| Depth (mm) | 568 |
| Weight (kg) | 8.7 |
| Color | White |
| Material | Plastic |
| Brand | Soler & Palau |
| Country of origin | Spain |
| BAR/EAN | 8413893873163 |
| Manufacturer Code | 5211304400 |
