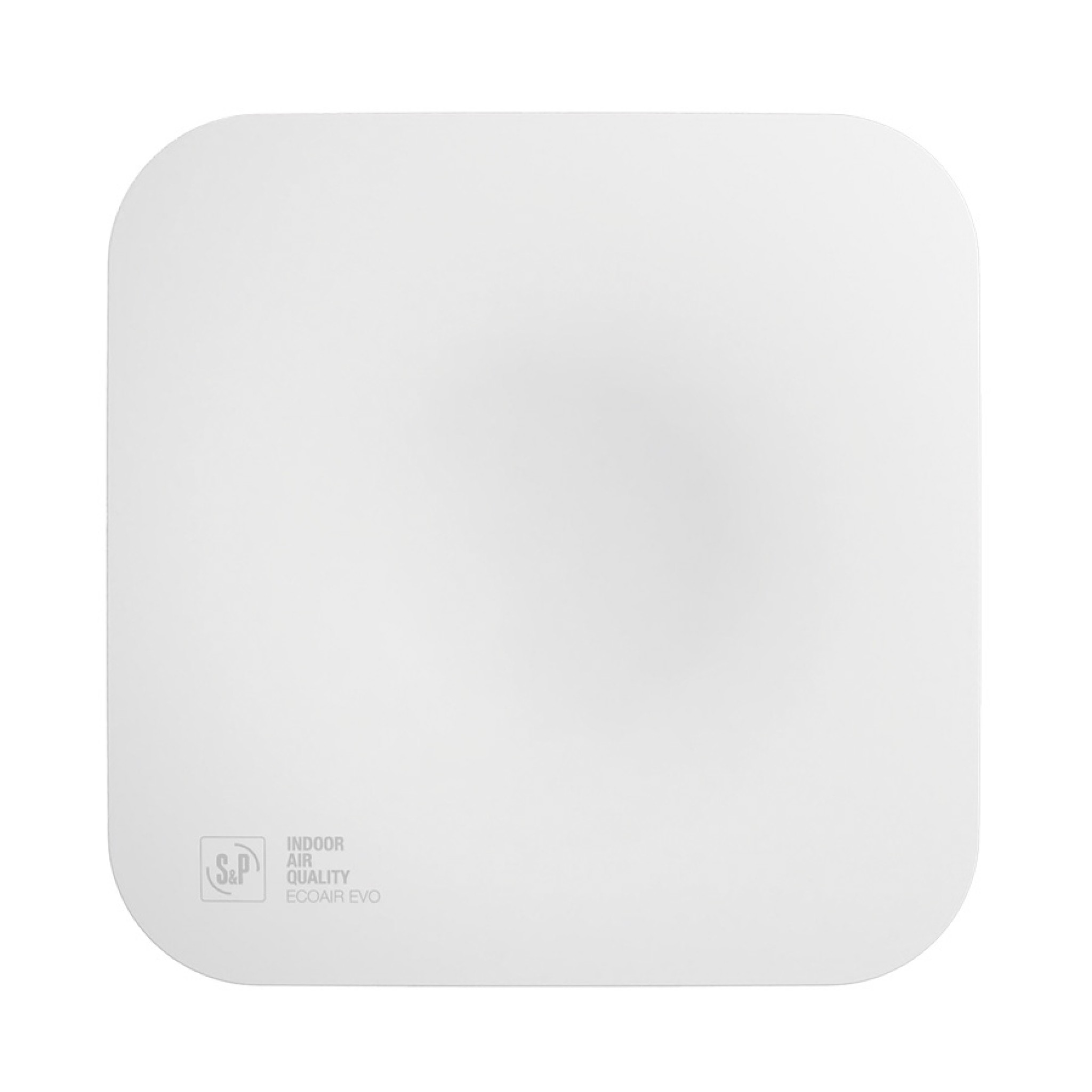

ECOAIR EVO ST Soler & Palau decentralised bathroom extractor fan with timer Ø100mm
€156.65 Incl. VAT
Soler & Palau ECOAIR EVO ST ultra-quiet 100mm bathroom exhaust fan designed for continuous and energy-efficient ventilation. Featuring constant airflow technology, adjustable trickle and boost speeds, run-on timer, and a high-performance EC motor, this silent extractor fan delivers powerful airflow with ultra-low noise levels from just 9 dB. Ideal for bathrooms, toilets, and humid spaces.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau ECOAIR EVO ST Ultra-quiet Decentralised Mechanical Bathroom Extractor Fan with Timer
The Soler & Palau ECOAIR EVO ST is a high-performance 100mm bathroom extractor fan engineered for quiet, continuous air extraction in residential spaces. Designed to deliver stable and energy-efficient ventilation, this modern exhaust fan continuously removes moisture, stale air, and everyday odours while maintaining a comfortable indoor environment.
Equipped with advanced constant airflow control, the ECOAIR EVO ST automatically maintains consistent extraction performance even with changing pressure conditions. The integrated run-on timer and adjustable airflow settings allow the fan to adapt to different ventilation requirements, making it an ideal solution for bathrooms, toilets, kitchens, and utility areas.
Its latest-generation EC motor provides ultra-low energy consumption with remarkably silent operation starting from only 9 dB(A), while boost mode delivers airflow up to 108 m³/h when increased extraction is needed.
The fan also features a built-in digital display and intuitive onboard controls for easy configuration and airflow monitoring.

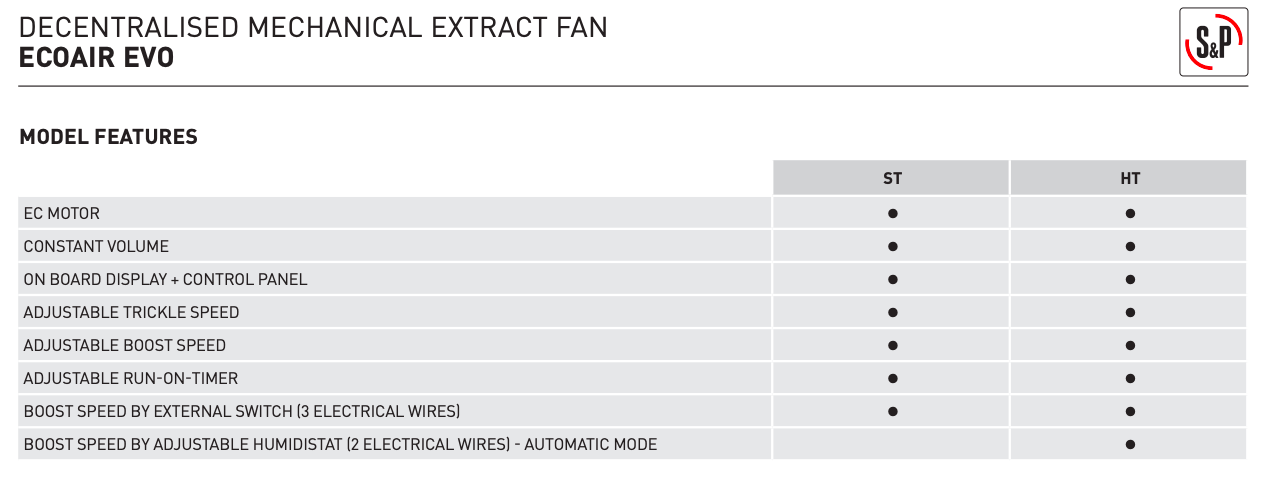

ECOAIR EVO MODEL FEATURES

KEY FEATURES & BENEFITS
- Quiet bathroom exhaust fan for continuous ventilation
- For 100mm connection
- Silent operation from just 9 dB(A)
- Adjustable run-on timer (1-30 min)
- Intelligent constant airflow technology
- Adjustable trickle and boost airflow modes
- Extraction airflow up to 108 m³/h
- Energy-saving EC motor
- Low power consumption from only 2W
- Digital display with onboard control interface
- IP45 rated for humid environments
- Suitable for wall or ceiling mounting
- Durable and modern design
- Made in Spain
TECHNICAL INFORMATION

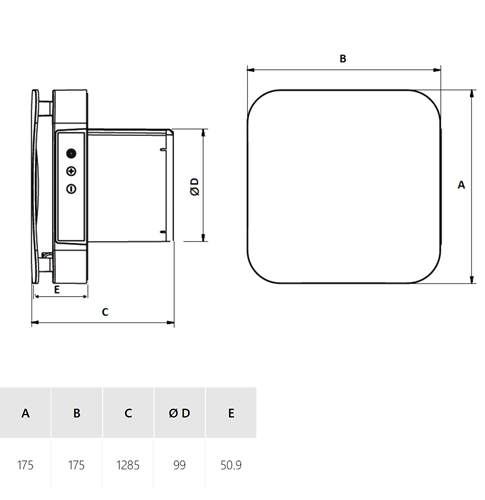

DIMENSIONS

EASY DIGITAL CONTROL
The integrated operating display allows quick access to:
- Airflow settings
- Timer adjustments
- Motor runtime information
The ECOAIR EVO ST combines silent performance, intelligent airflow management, and low-energy operation in a compact bathroom ventilation fan designed for everyday comfort.
APPLICATIONS
The Soler & Palau ECOAIR EVO ST is ideal for bathrooms, toilets, shower rooms, utility rooms, kitchens, apartments and modern homes. Designed for continuous or intermittent ventilation, it provides reliable and energy-efficient air extraction wherever effective moisture and air quality control are required.
The fan helps reduce humidity, condensation and steam while removing stale air and unwanted odours. Quiet operation and adjustable airflow make it an excellent choice for maintaining a healthier, fresher and more comfortable indoor environment.


| Weight | 0.7 kg |
|---|---|
| Dimensions | 370 × 185 × 295 mm |
| Product type | Bathroom and WC extract fan |
| Series | ECOAIR EVO |
| Functions | Timer |
| Connection diameter Ø (mm) | 100 |
| Product features | Control panel, On board display |
| Backdraft shutter | No |
| Speed control | Automatic, Electronic, Variable |
| Operation mode | Boost, Continuous |
| Airflow (m³/h) | 18-108 |
| Sound level (dB(A)) | 9-34.6 |
| Power (W) | 2-4.5 |
| Temperature range (°C) | 0 / +40 |
| Electrical supply | Single phase |
| Frequency (Hz) | 50/60 |
| Voltage (V) | 230 |
| Thermal overload protection | Yes |
| Protection Class | Class II |
| IP rating | IP45 |
| Mounting type | Ceiling mounted, Wall mounted |
| Height (mm) | 175 |
| Width (mm) | 175 |
| Depth (mm) | 128.5 |
| Weight (kg) | 0.53 |
| Material | Plastic |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| Manufacturer Code | 5210020900 |
| Manufacturer | Soler & Palau |
