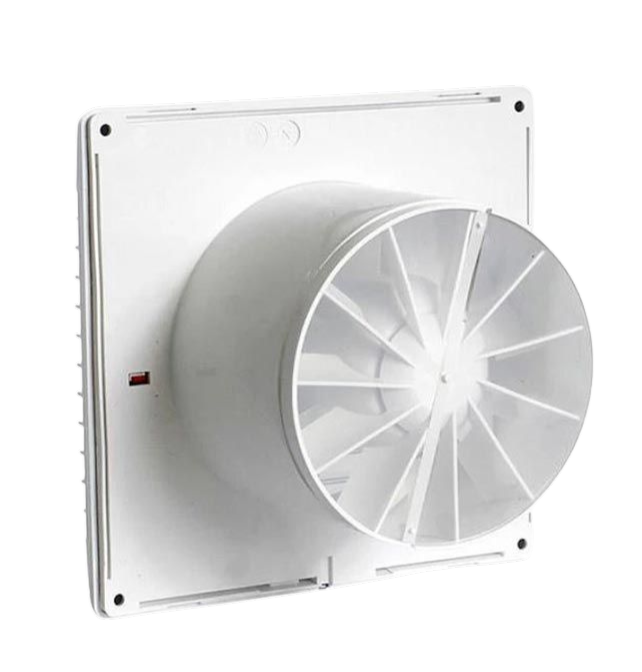

DECOR-100 CD Soler & Palau bathroom extractor fan with motion sensor and timer Ø100mm
€123.30 Incl. VAT
Soler & Palau DECOR-100 CD bathroom extractor fan with PIR motion sensor, adjustable run-on timer, and automatic backdraft shutter for convenient and energy-efficient bathroom ventilation, 100mm connection. Designed for bathrooms and WC areas, this reliable exhaust fan delivers 95 m³/h airflow to help reduce humidity, condensation, and unwanted odours while operating automatically when movement is detected.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– The Soler & Palau DECOR-100 CD is a high-performance 100mm axial bathroom and WC extractor fan with timer and motion sensor designed for automatic and energy-efficient ventilation.
– Equipped with a PIR motion sensor, the fan activates instantly when movement is detected within up to 4 metres, ensuring responsive air extraction in frequently used spaces.
– Its adjustable timer (1–30 minutes) keeps the fan operating after motion stops, with settings accessible on the PCB once the slim front grille is removed.

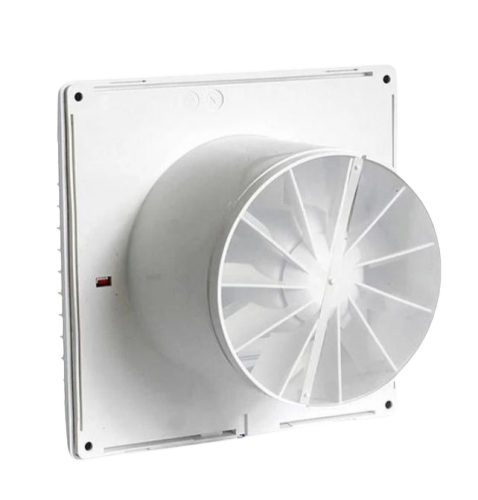

– Delivering a 95 m³/h airflow rate, the DECOR-100 CD also includes an automatic backdraft shutter to prevent reverse airflow and minimise heat loss when idle.
– Additional features include a neon indicator light, Class II insulation, an IPX4 protection rating and a durable plastic housing suitable for humid environments.
– The single-phase 230V Class B motor is equipped with thermal overload protection and is rated for operation from 0 to 40°C.
– With its sleek low-profile design and compatibility with wall or ceiling installation, the DECOR-100 CD offers an efficient, long-lasting ventilation solution for modern bathrooms.
– Made in Spain.
TECHNICAL INFORMATION:
Connection diameter Ø: 100 mm
Adjustable run-on-timer (1-30min)
Motion sensor (PIR)
Automatic back draft shutter
Neon light indicator
Airflow rate: 95 m³/h
Sound level: 40 dB(A)
Power: 13 W
Speed: 2500 rpm
230 V / 50 Hz
Class II
Class B
0 to +40 ºC
IPX4
| Weight | 0.640 kg |
|---|---|
| Dimensions | 135 × 178 × 200 mm |
| Product type | Bathroom and WC extract fan |
| Series | DECOR |
| Functions | Motion sensor, Timer |
| Connection diameter Ø (mm) | 100 |
| Ball Bearings | No |
| Backdraft shutter | Yes |
| Number of Speeds | 1 speed |
| Speed control | Fixed speed |
| Airflow (m³/h) | 95 |
| Sound level (dB(A)) | 40 |
| Power (W) | 13 |
| Temperature range (°C) | 0 / +40 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Height (mm) | 158 |
| Width (mm) | 158 |
| Depth (mm) | 85 |
| Weight (kg) | 0.44 |
| Material | Plastic |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893106001 |
| Manufacturer Code | 5210004700 |
