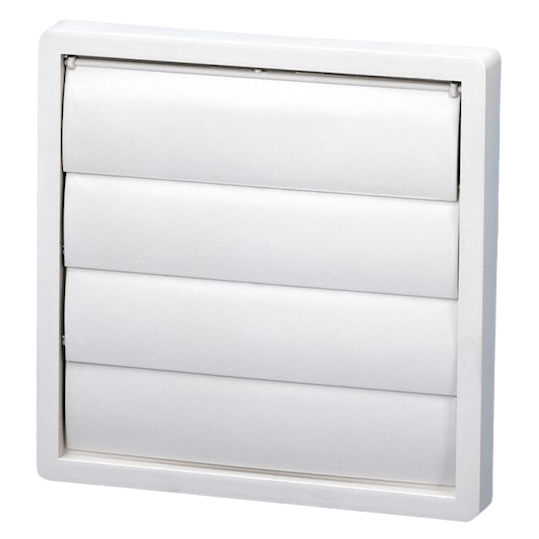

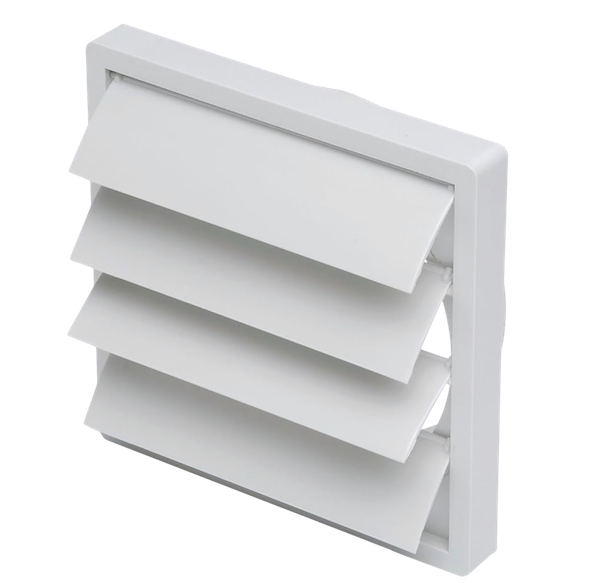

PER-100 W Soler & Palau ventilation grille with gravity shutter Ø100 mm
€14.94 Incl. VAT
Soler & Palau PER-100 W external ventilation grille with gravity shutter for Ø100 mm ventilation systems provides reliable backdraft protection for supply and exhaust ventilation. The UV-stabilized plastic louvre vent automatically closes when the fan is switched off, helping prevent backdrafts, cold air, draughts, insects, and debris while ensuring efficient airflow.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau PER-100 W external ventilation grille with gravity shutter is designed for Ø100 mm supply and exhaust ventilation systems, providing reliable airflow management and effective backdraft protection for residential and commercial buildings.
Manufactured from high-quality UV-stabilized white plastic, this external air vent grille is resistant to weather and UV exposure, making it suitable for long-term outdoor use. The gravity-operated louvre shutter opens automatically during fan operation and closes when the fan stops, helping prevent backdrafts, cold air, draughts, insects, dust, and debris from entering the ventilation duct.
Ideal for residential, commercial, and light industrial ventilation systems.
KEY FEATURES
- External ventilation grille with gravity shutter
- Suitable for Ø100 mm ventilation ducts
- Designed for supply and exhaust ventilation systems
- Automatic backdraft shutter prevents reverse airflow
- Helps block cold air, draughts, insects, dust, and debris
- Manufactured from UV-stabilized white plastic
- Weather-resistant and suitable for outdoor installation
- Lightweight, durable, and easy to maintain
- Ideal for residential and commercial HVAC applications

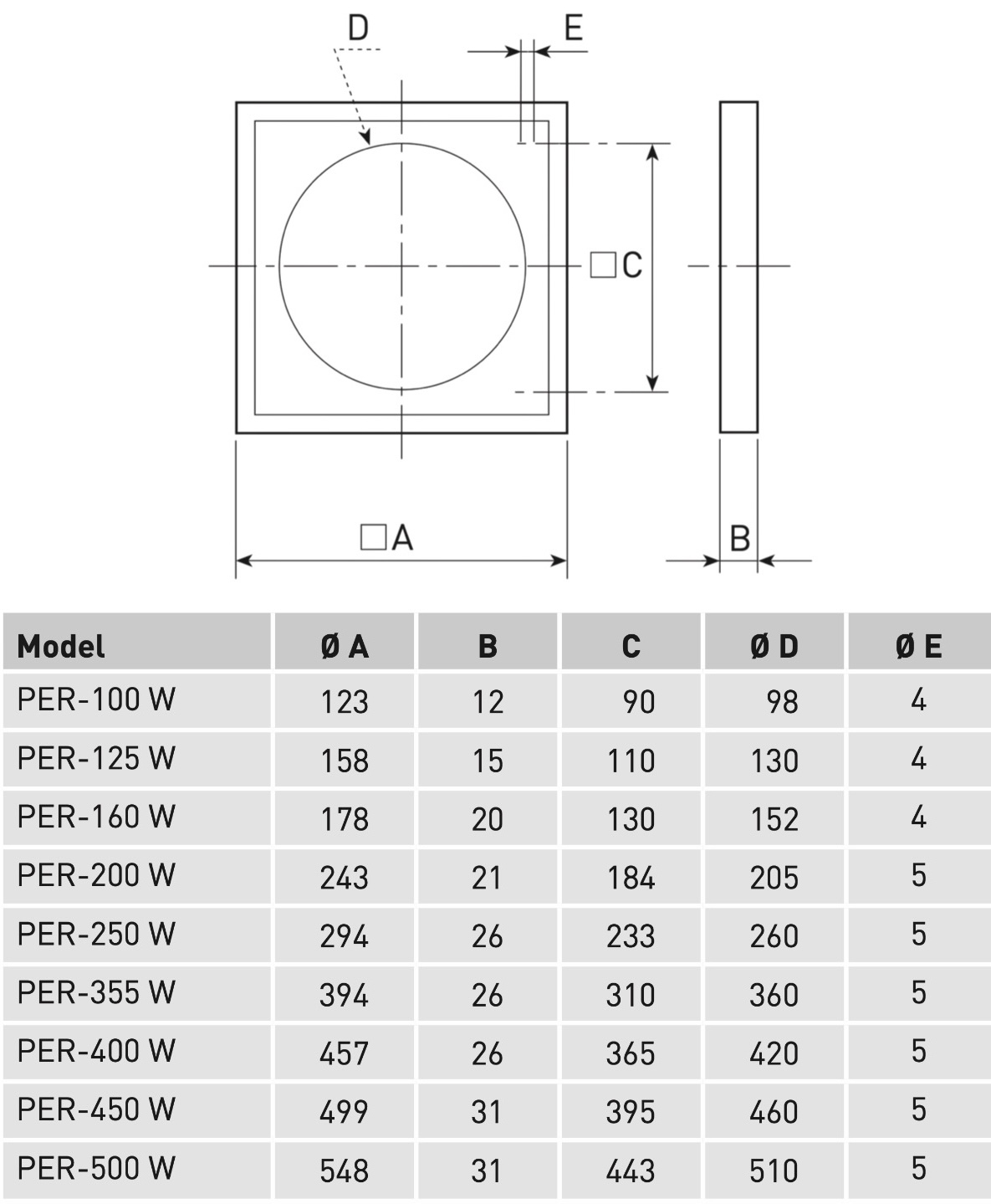

DIMENSIONS
| Weight | 0.2 kg |
|---|---|
| Dimensions | 128 × 15 × 128 mm |
| Product type | External ventilation grille |
| Series | PER-W |
| Connection diameter Ø (mm) | 100 |
| Mounting type | Surface mounted, Wall mounted |
| Height (mm) | 123 |
| Width (mm) | 123 |
| Depth (mm) | 12 |
| Weight (kg) | 0.18 |
| Material | Plastic |
| Color | White |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893047786 |
| Manufacturer Code | 5406075100 |
| Manufacturer | Soler & Palau |
