DSAV-125 C external ventilation grille with insect screen Ø125 mm DEC International
€8.85 Incl. VAT
DEC International DSAV-125 C external ventilation grille Ø125 mm is a durable aluminium weather protection grille with an integrated insect screen for air supply and exhaust ventilation systems. Curved external louvres help maintain efficient airflow while reducing rain ingress, making it suitable for both natural and mechanical ventilation.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

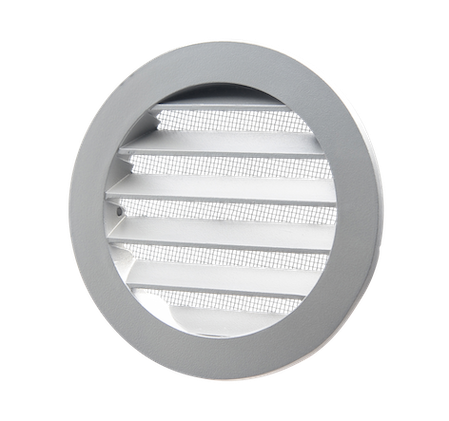

The DEC International DSAV-125 C is a durable round aluminium weather protection grille designed for Ø125 mm ventilation ducts in air supply and exhaust ventilation systems.
Its robust cast aluminium construction and discreet grey finish make it suitable for residential, commercial, and industrial buildings where reliable outdoor ventilation is required.

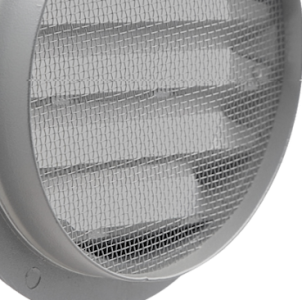

Curved louvres help reduce rain entering the ventilation duct without restricting airflow, while the integrated stainless steel insect screen with 2 mm wire spacing helps prevent insects and other small pests from entering the system.
The grille is suitable for both natural and mechanical ventilation and can be installed by nailing or casting into masonry.
KEY FEATURES
- External ventilation grille for Ø125 mm ventilation ducts
- Cast aluminium weather protection grille
- Stainless steel insect screen (2 mm wire spacing)
- Curved external louvres help reduce rain ingress
- Suitable for air supply and exhaust ventilation
- Ideal for natural and mechanical ventilation systems
- Grey RAL 9006 finish
- Installation by nailing or casting into masonry
- Suitable for residential, commercial, and industrial applications

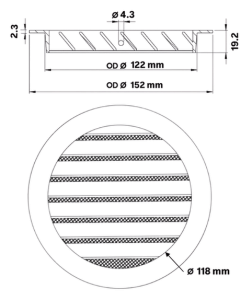

DSAV-125 C DIMENSIONS

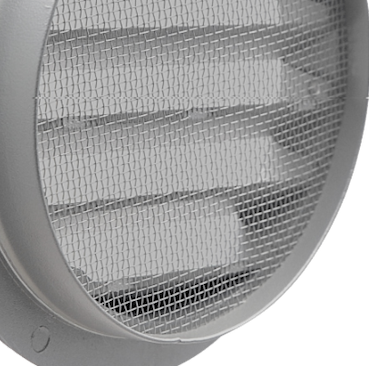

INSECT SCREEN
Every 3 months the screen should be cleaned to prevent clogging.
The insect screen has to be removed in mechanical ventilation when used for supply air.
| Weight | 0.250 kg |
|---|---|
| Dimensions | 21 × 154 × 154 mm |
| Product type | External ventilation grille |
| Series | DSAV-C |
| Product features | Insect screen |
| Rubber gasket | No |
| Mounting type | Wall mounted |
| Product diameter Ø (mm) | 152 |
| Depth (mm) | 19.2 |
| Weight (kg) | 0.145 |
| Material | Aluminium, Stainless steel |
| Color | Silver |
| Country of origin | Netherlands |
| Brand | DEC INTERNATIONAL |
| Manufacturer Code | DSAV125C |
| Manufacturer | DEC International |
