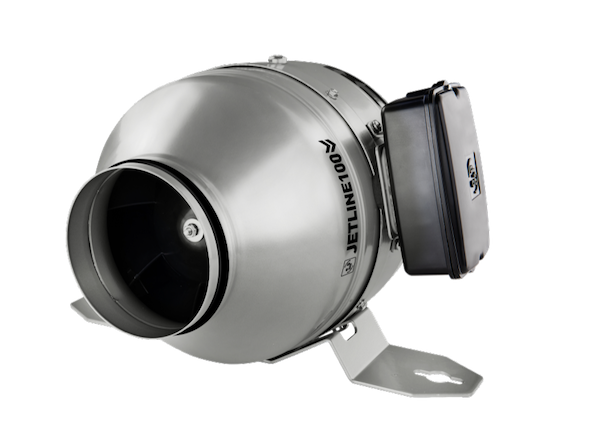

JETLINE-100 Soler & Palau quiet inline duct fan Ø100mm
Soler & Palau JETLINE-100 quiet inline duct fan Ø100 mm is a high-performance centrifugal inline fan delivering airflow up to 267 m³/h with a low noise level of just 39 dB(A). Its low-profile galvanised steel casing makes it ideal for residential, commercial, and HVAC ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau JETLINE-100 low-profile inline duct fan is designed for 100 mm ventilation duct systems where high airflow, low noise operation, and compact installation are required. Its galvanised steel housing makes it suitable for suspended ceilings and other installations with limited mounting space.

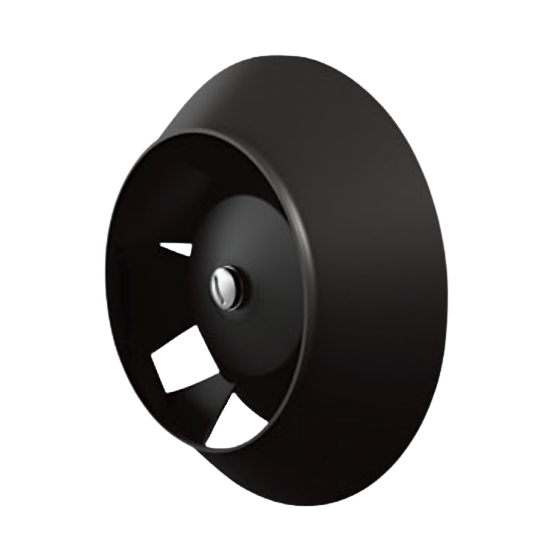

The fan features an optimised aerodynamic impeller, guide vane, and outlet diffuser that improve airflow performance while reducing turbulence and operating noise. An airtight connection between the steel casing and guide vane, together with integrated rubber seals on the duct flanges, helps minimise air leakage and maintain efficient system performance.
KEY FEATURES
- Quiet 100 mm inline duct fan
- Airflow up to 267 m³/h
- Low noise level of 39 dB(A)
- Low-profile galvanised steel casing
- High aerodynamic performance
- Optimised impeller, guide vane and outlet diffuser
- Airtight housing construction to minimise air leakage
- Rubber-sealed duct connections for improved airtightness
- Silent-block motor mounting to reduce vibration and installation noise
- Built-in IP65 terminal box suitable for demanding installation environments
- Heavy-duty mounting bracket with two installation positions
Two mounting positions for support:
MOTOR & TECHNICAL INFORMATION
- Single-phase external rotor AC motor
- Voltage controllable speed
- Compatible with RMB-1.5 speed controller
- Thermal overload protection with manual reset
- Power supply: 220–240 V / 50–60 Hz
- Protection rating: IP44 motor / IP65 terminal box
- Motor insulation: Class F
- Operating temperature: -20°C to +60°C
CHARACTERISTICS
DIMENSIONS
APPLICATIONS
Suitable for bathroom ventilation, kitchen extraction, utility rooms, technical rooms, office ventilation, commercial premises, and other 100 mm duct ventilation systems where quiet operation, compact installation, and reliable airflow are required.
INSTALLATION POSITIONS
The Jetline fan can be installed in any position, providing maximum installation flexibility.
| Dimensions | 325 × 295 mm |
|---|---|
| Product type | In-line duct fan |
| Series | JETLINE |
| Connection diameter Ø (mm) | 100 |
| Ball Bearings | Yes |
| Number of Speeds | 1 speed |
| Speed control | Autotransformer speed controller |
| Speed controller | RMB-1,5 |
| IP rating | IP44 |
| Electrical supply | Single phase |
| Voltage (V) | 230-240 |
| Frequency (Hz) | 50/60 |
| Temperature range (°C) | -20 / +60 |
| Protection Class | Class I |
| Motor type | AC motor |
| Motor insulation class | Class I |
| Thermal overload protection | Yes |
| Rubber gasket | Yes |
| Mounting type | Ceiling mounted, Wall mounted |
| Material | Galvanized steel sheet |
| Color | Silver |
| Country of origin | Spain |
| Brand | Soler & Palau |
| BAR/EAN | 8413893356369 |
| Manufacturer Code | 5145895600 |
| Manufacturer | Soler & Palau |
